250 gallon tote, 5 hp high-pressure Honda Pump 1 1/2″ output, forklift pockets.
Month: September 2020
MINI-MO
SPECS
Capacity*- max gross weight 3,000 lbs
With rotator 1,500 lbs
Maximum angle is + or – 25 degrees
Vertical heights (all measurements are without the rotator)
Lowest height (base turned off) 25.5”
Mid position (flying position) 35.5”
Highest position (no angle) 46.5”
With rotator and frame add 10” to above numbers
Cylinder speed 24”/second or .5 of a G acceleration
Footprint of the bottom triangle 42”x42”x42”
MiniMo is usually mounted to (2) 5’x10’ trench plates.
We have a scissor lift which can raise the Mini-mo an extra 48”
The pump is set up outside for noise reduction
The power requirements for hydraulic pump are 208 volts 3 phase 80 amps a leg
The computer is 50’ away from base
*The size of the prop or set can affect the maximum capacity
SPIDER BOT
SPECS

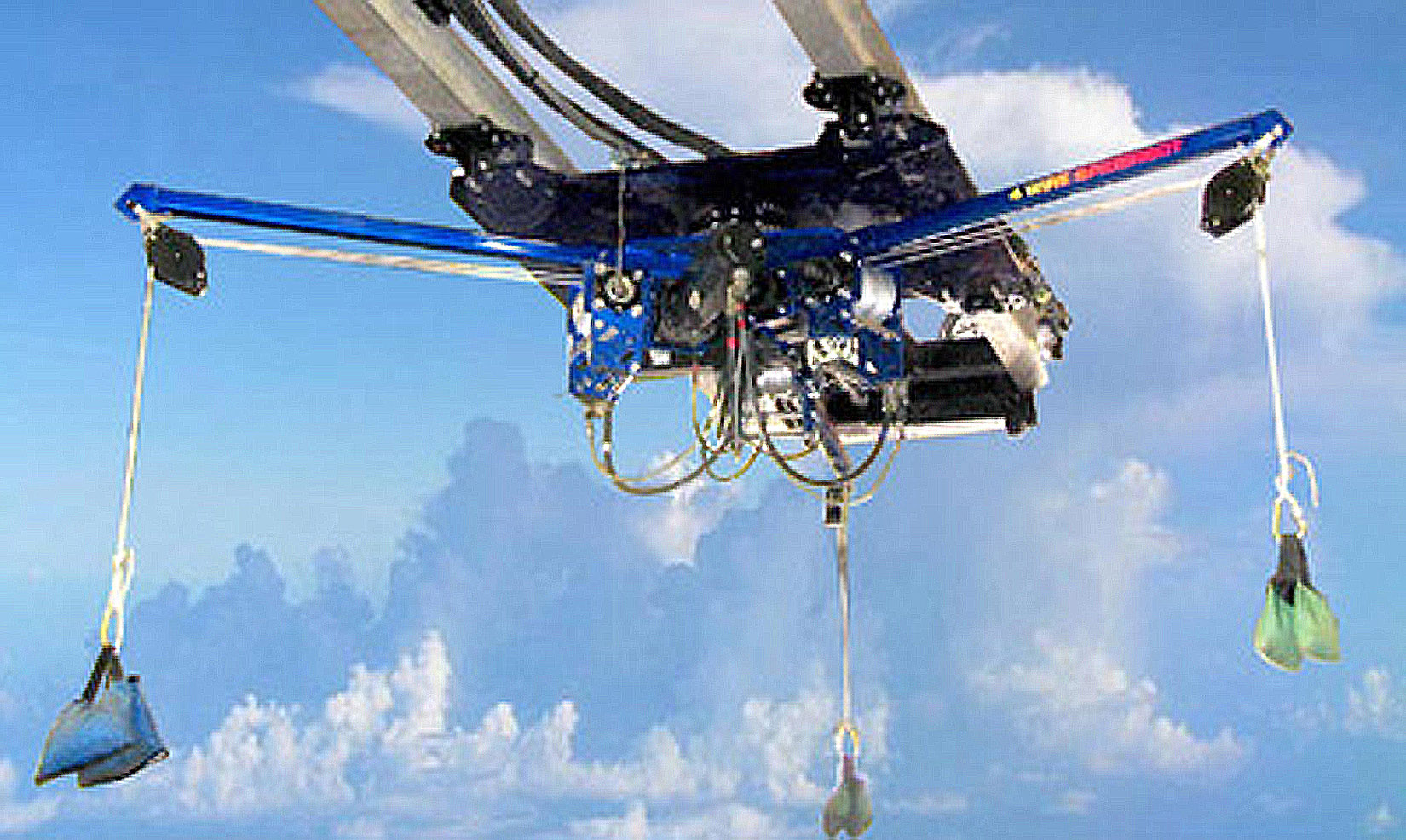

NAC 3 Winch Spiderbot
Capacity – 800 lbs
Speed – Up to 13 ft/sec maximum
Travel – Up to 15ft/sec on a 75 ft long overhead track using double H-Beam supported by Rock and Roll Truss.
Rotation – + or – 360 degrees, up to 180 degrees/second
Cable – 3/16 Tech 12 per winch
Power Requirements – 208 VAC 3 phase 100 amps per leg
Safety – If a motor faults, a failsafe brake stops the axis and the estop button applied will stop the rest
Transportation Will all fit on a stake bed truck
NAC Spiderbot
Capacity – 300 lbs
Speed – Up to 13 ft/sec maximum
Travel – Up to 15ft/sec on a 75 ft long overhead track using a single H-Beam supported by Rock and Roll Truss.
Rotation – Continuous in either direction. Up to 1 revolution per second
Cable – 3/16 Tech 12 per winch
Power Requirements – 208 VAC 3 phase 30 amps per leg
Safety – If a motor faults, a failsafe brake stops the axis and the estop button applied will stop the rest
Transportation Will all fit on a stake bed truck
NAC SERVO WINCHES
SPECS

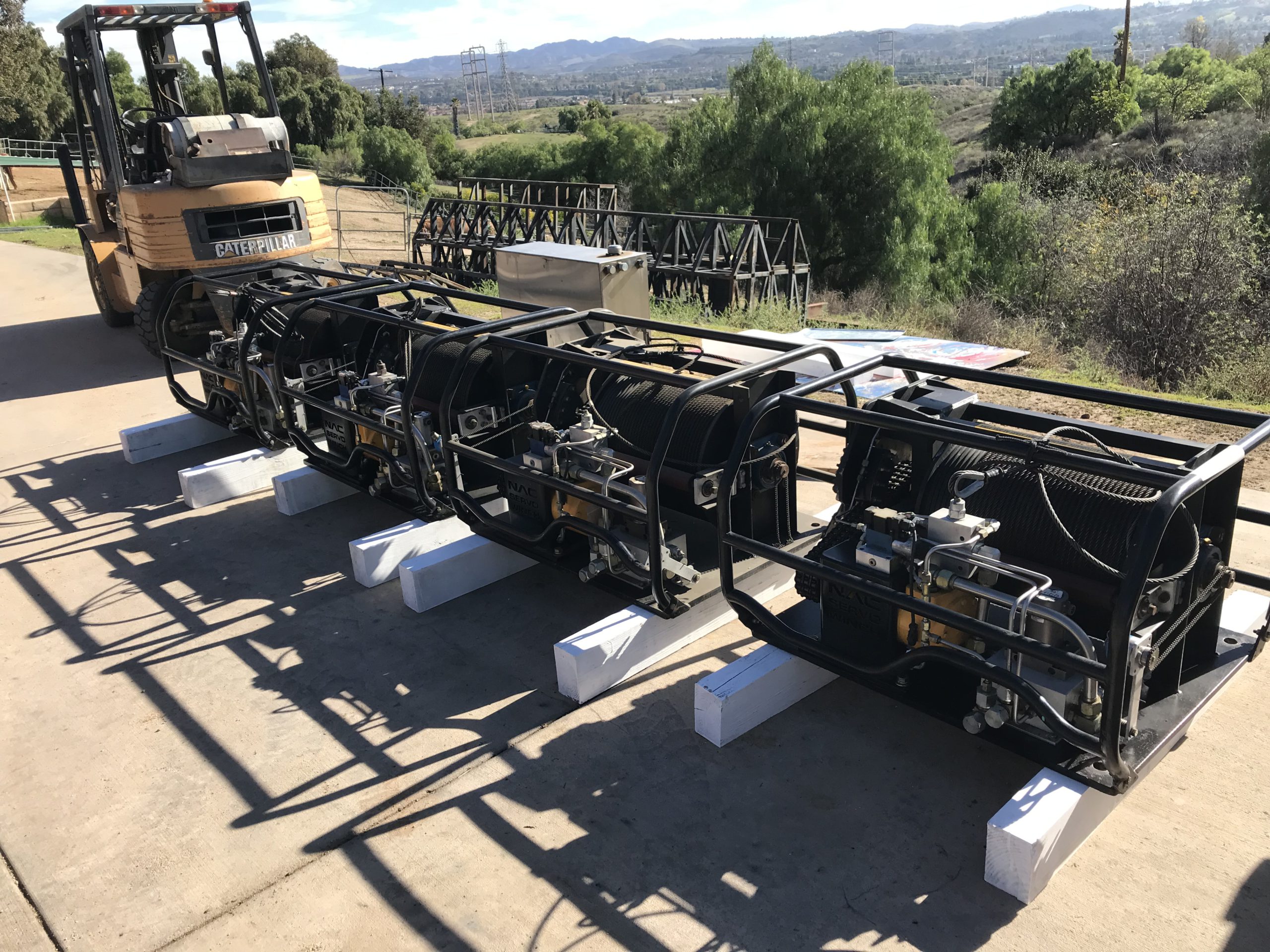

NAC Servo Winches
Capacity – 2500 Lbs single line pull
Speed – Up to 13 ft/sec maximum
Travel – Up to 100’ of usable travel
Cable – 3/8” 7×19 wire rope
Configuration-
Winches can be
- Bolted to the floor
- Rigged to the ceiling if rated for the load
Installed in an NAC frame and hung from a 250 ton crane
Power Requirements – 480 Volt 3 phase with 200 amps per leg
Safety – When activated the E-stop simultaneously applies the disc brake and deenergizes the winch motor valve which removes the hydraulic power
Transportation – The system weighs 27,000 Lbs and takes 1 48’ flat bed truck
MO
SPECS
Capacity*- max gross weight 75,000 lbs
With rotator 50,000 lbs
Maximum angle is + or – 25 degrees
Vertical heights (all measurements are without the rotator)
Lowest height (base turned off) 108”
Mid position (flying position) 153”
Highest position (no angle) 198”
With rotator and frame add 23” to above numbers
Cylinder speed 16”/second .5 of a G acceleration
Footprint of the bottom triangle 20’x20’x20’
Motion base best mounted to 10” reinforced concrete with (40) 1 1/8” taper bolts
Consult NAC about any flooring issues
The pump is set up outside for noise reduction
We have a 400-horsepower hydraulic pump or 750 horsepower diesel hydraulic pump depending on application
*The size of the prop or set can affect the maximum capacity
MIGHTY-MO
SPECS
Capacity*- max gross weight 35,000 lbs
With rotator 25,000 lbs
Maximum angle is + or – 25 degrees
Vertical heights (all measurements are without the rotator)
Lowest height (base turned off) 63”
Mid position (flying position) 93”
Highest position (no angle) 120”
With rotator and frame add 18” to top of the kaydon bearing to above numbers Cylinder speed 16”/second or .5 of a G acceleration
Footprint of the bottom triangle 13’x13’x13’
Motion base best mounted to 8” reinforced concrete with (18) 1” taper bolts Consult NAC about any flooring issues
We have a 20’ x 20’ adapter frame for set construction
The pump is set up outside for noise reduction
The power requirements for hydraulic pump are 480 volts 3 phase 200 amps a leg 40,000 Total shipping weight with 1 @ 48” truck
The computer is 50’ away from base
*The size of the prop or set can affect the maximum capacity

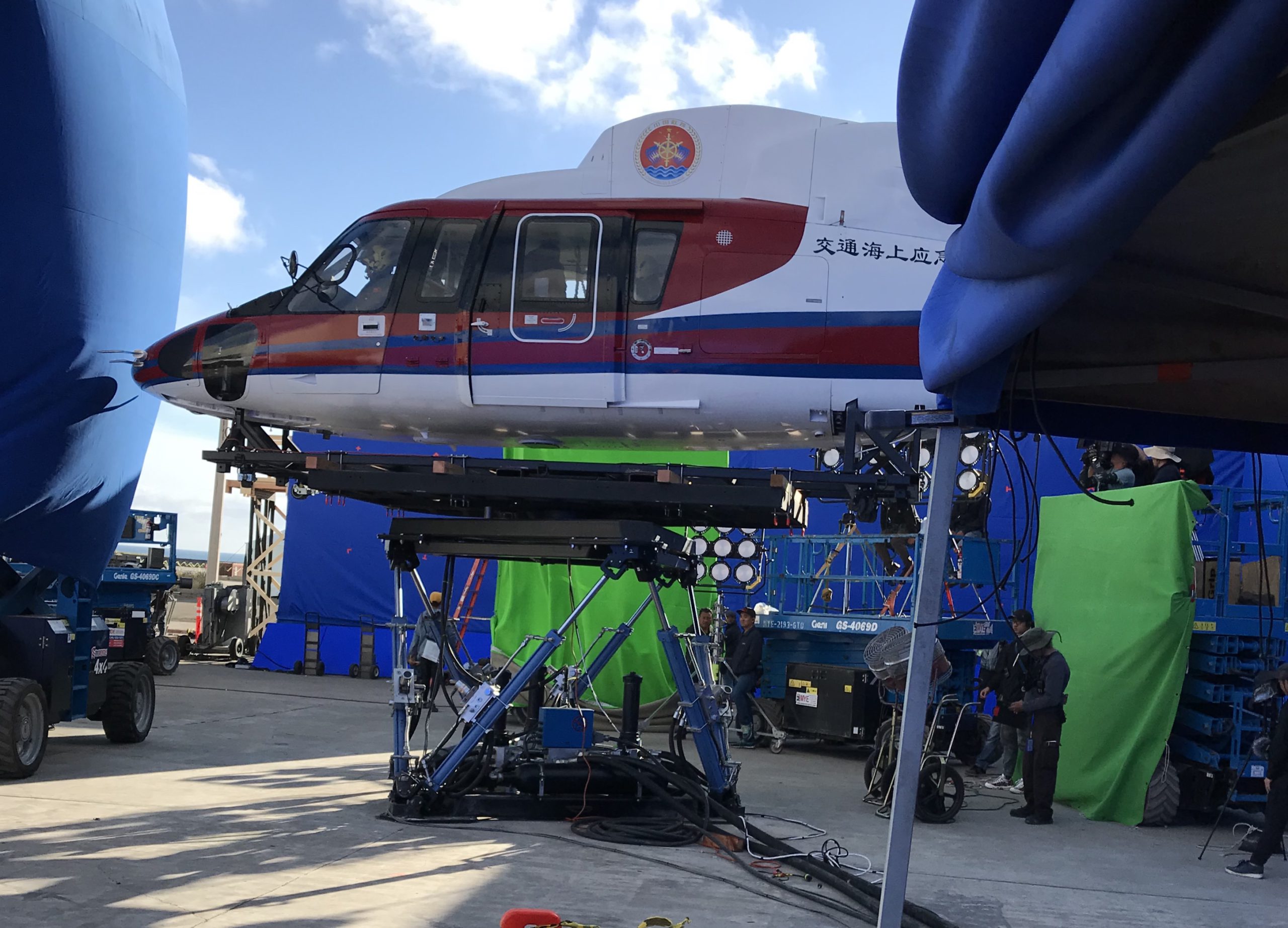

NACMO II
SPECS
Capacity*- max gross weight 16,000 lbs
With rotator 10,000 lbs
Maximum angle is + or – 25 degrees
Vertical heights (all measurements are without the rotator)
Lowest height (base turned off) 59”
Mid position (flying position) 82”
Highest position (no angle) 105”
With rotator and frame add 19” to above numbers
Cylinder speed 18”/second .5 of a G acceleration
Footprint of the bottom triangle 10’x10’x10’
Motion base best mounted to 6” reinforced concrete with (18) 3⁄4” taper bolts Consult NAC about any flooring issues
We have decking for sets and mounts for cars and helicopters
The pump is set up outside for noise reduction
The power requirements for hydraulic pump are 480 volts 3 phase 200 amps a leg 35,000 Total shipping weight with 1 @ 48” truck

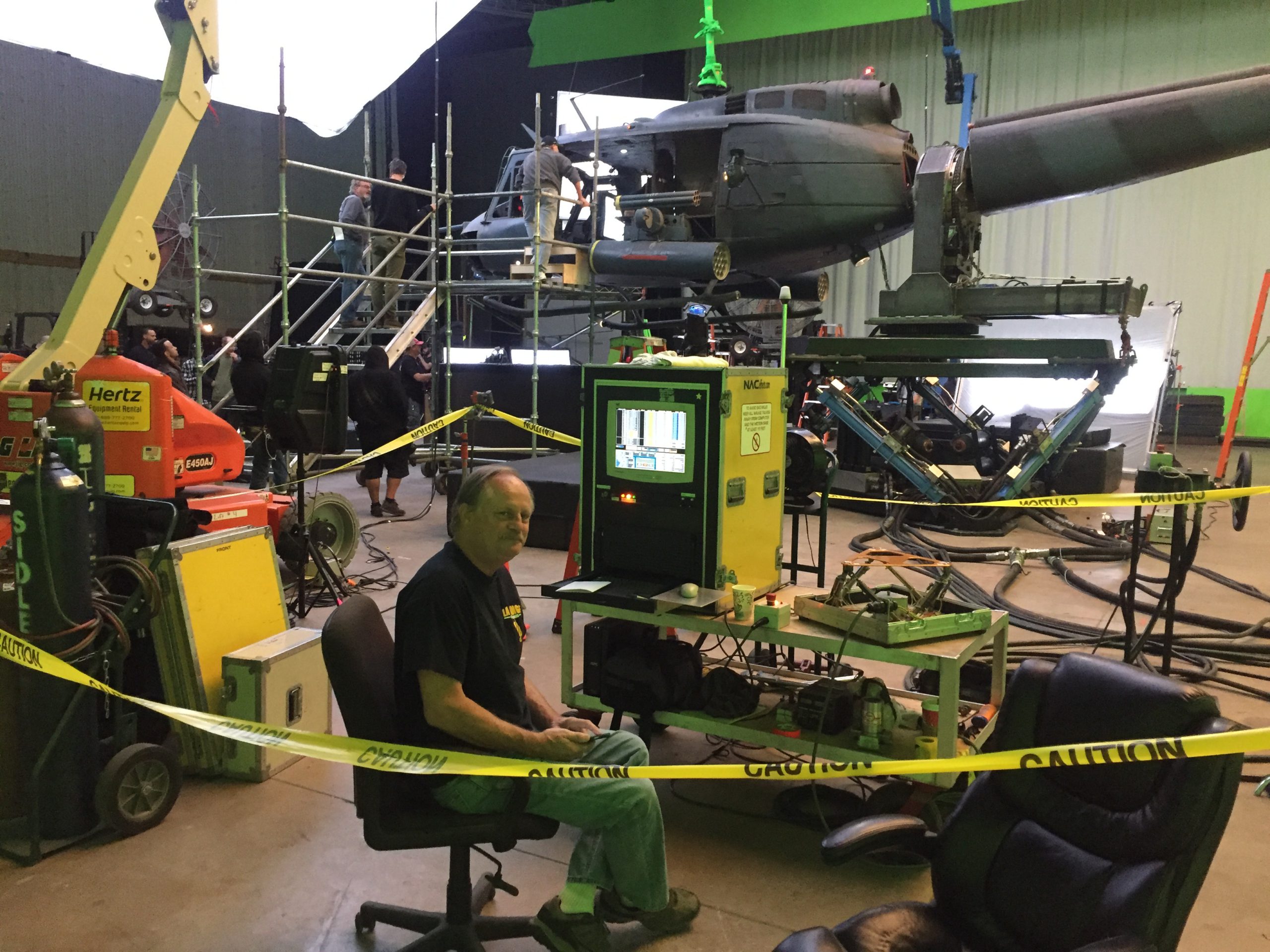

The computer is 50’ away from base
*The size of the prop or set can affect the maximum capacity.

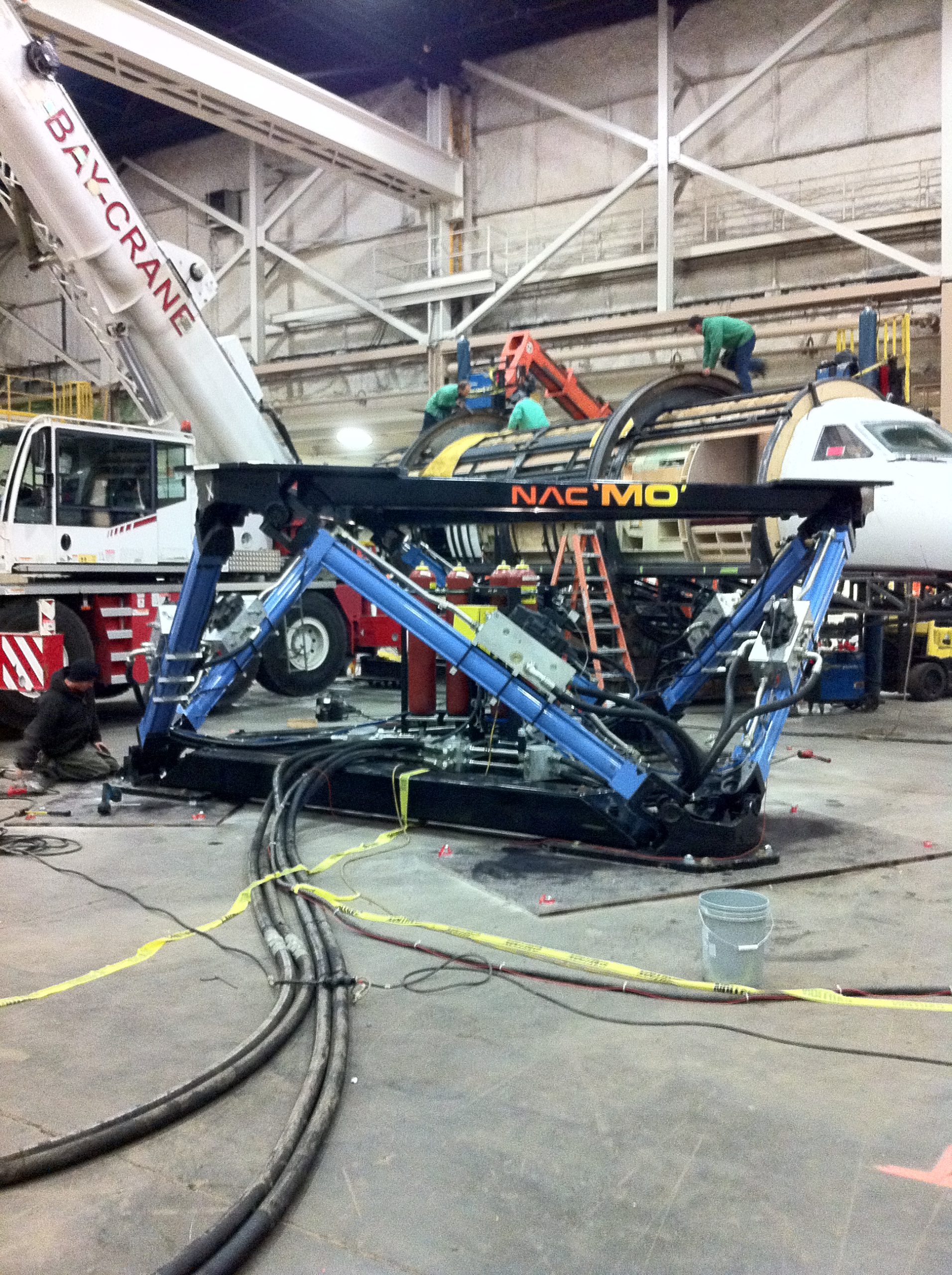

NACMO
SPECS
Capacity*- max gross weight 16,000 lbs
With rotator 10,000 lbs
Maximum angle is + or – 25 degrees
Vertical heights (all measurements are without the rotator) Lowest height (base turned off) 52”
Mid position (flying position) 73”
Highest position (no angle) 94”
With rotator and frame add 19” to above numbers
Cylinder speed 18”/second .5 of a G acceleration
Footprint of the bottom triangle 10’x10’x10’
Motion base best mounted to 6” reinforced concrete with (18) 3⁄4” taper bolts Consult NAC about any flooring issues
We have decking for sets and mounts for cars and helicopters
The pump is set up outside for noise reduction
The power requirements for hydraulic pump are 480 volts 3 phase 200 amps a leg
35,000 Total shipping weight with 1 @ 48” truck
The computer is 50’ away from base
*The size of the prop or set can affect the maximum capacity.
